Handheld Laser Welder
ZHONGKE® Handheld Laser Welder: As Simple as TIG, Ten Times More Powerful. Bid farewell to blinding arcs, intense heat, and thick fumes. Step into a new era of green welding with ZHONGKE®. The ZHONGKE® Handheld Laser Welder is a revolutionary piece of equipment. It masterfully combines a high-performance fiber laser source with a flexible handheld welding gun, enabling even complete beginners to perform high-quality welds quickly. No professional welding certification or complex programming is
8- ZK-SCS500,ZK-SCS1000,ZK-SCS1500,ZK-SCS2000
- 产品详情
ZHONGKE® Handheld Laser Welder: As Simple as TIG, Ten Times More Powerful.
Bid farewell to blinding arcs, intense heat, and thick fumes. Step into a new era of green welding with ZHONGKE®.

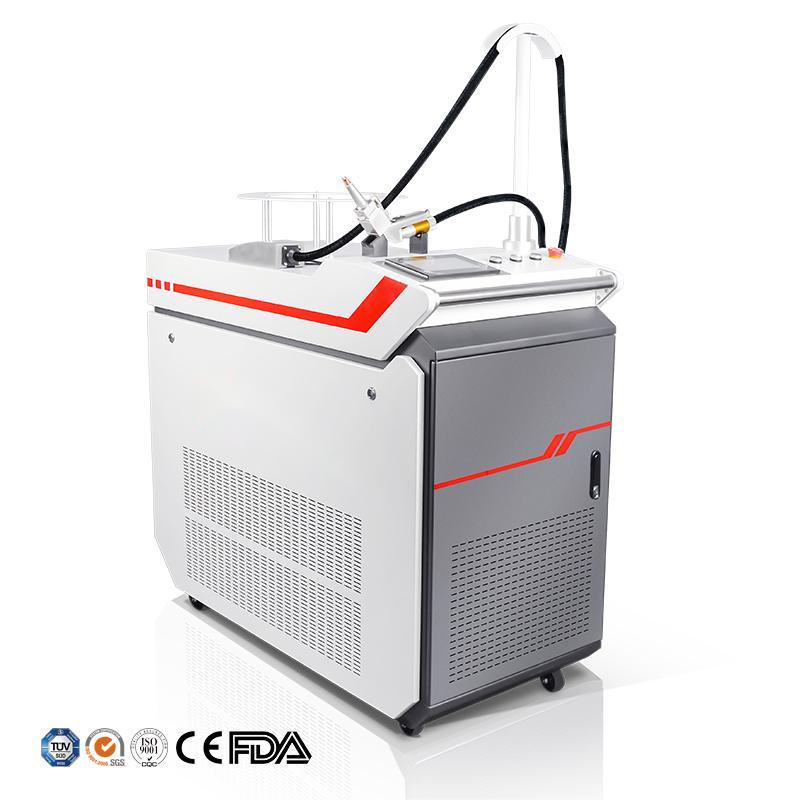

The ZHONGKE® Handheld Laser Welder is a revolutionary piece of equipment. It masterfully combines a high-performance fiber laser source with a flexible handheld welding gun, enabling even complete beginners to perform high-quality welds quickly. No professional welding certification or complex programming is needed to achieve perfect welds on stainless steel, carbon steel, aluminum alloy, copper, and various other metals. It is the ultimate solution for replacing traditional TIG and MIG welding, reducing costs, improving efficiency, enhancing quality, and creating a better working environment.
Why are traditional welders switching to handheld laser welding?
It solves all the pain points of traditional welding, transforming high-skill laser technology into something as easy to use as a power tool.
1. Extremely Simple Operation, Quick to Master
No Experience Needed, Easy to Learn: The operation is similar to TIG welding—simply point the gun at the seam and move. No complex programming or extensive training required. Beginners can produce clean welds in no time.
Minimal Fixturing Required: Tolerates wider gaps between workpieces effectively. Unlike traditional laser welders, it doesn't require precise clamping, making it ideal for on-site repairs and quick jobs.
2. Exceptional Weld Quality, Superior Results
Beautiful Welds, Minimal Grinding: Concentrated laser energy ensures fast welding speeds, resulting in smooth, consistent, flat or fish-scale pattern welds with minimal spatter, drastically reducing post-weld grinding and polishing.
Minimal Heat Input, Virtually No Distortion: Precise heat control means almost no workpiece distortion, perfect for precision work and thin sheets, effectively eliminating post-weld rejection risks.
High Weld Strength: Sufficient penetration and excellent fusion create weld seams with strength matching or exceeding the base material, ensuring structural integrity.
3. Highly Efficient & Cost-Effective
Dramatically Increased Speed: Welding speeds are 2-5 times faster than traditional TIG welding, significantly boosting productivity and shortening delivery times.
Extremely Low Energy Consumption: High photoelectric conversion efficiency can save 70%-90% on electricity compared to traditional welding, leading to substantial long-term cost savings.
Reduced Labor Costs: Reduces dependency on highly-paid, certified welders. Regular operators can achieve excellent results, solving the challenge of finding skilled welders.
4. Green, Safe & Improved Working Environment
No Harmful Arc Radiation: The laser wavelength is outside the harmful spectrum. No need for heavy dark face shields—only standard laser safety glasses are needed, offering better visibility and comfort.
Significantly Less Fume: Reduces fume generation by over 80% compared to the heavy smoke of traditional welding. Simple fume extraction is sufficient, greatly improving air quality and protecting worker health.
ZHONGKE® Handheld Laser Welder Technical Parameters
Parameter | Specification |
|---|---|
Model | ZK-SCS500, DM-SCS1000, DM-SCS1500, DM-SCS2000 |
Brand | ZHONGKE® |
Laser Power | 500W / 1000W / 1500W / 2000W (Optional. Higher power enables faster speeds & greater thickness) |
Laser Type | Fiber Laser |
Wavelength | 1070nm ±5nm |
Beam Mode | Multi-Mode |
Electro-Optic Efficiency | ≈30% |
Operating Mode | Continuous Wave (CW) |
Power Adjustment Range | 5% - 95% |
Power Stability | ≤ ±2% |
Fiber Core Diameter | 50μm - 100μm |
Focus Spot Size | ≥ 0.2mm |
Fiber Length | 5m, 10m, 15m (Optional) |
Cooling Method | Water Cooling |
Chiller Model | 1.0P / 1.5P Dual-Circuit |
Cooling Water Temp | 20°C - 25°C |
Power Supply | AC 220V ±10% / AC 380V ±10%, 50/60Hz |
Operating Temp | 10°C ~ 35°C |
Operating Humidity | ≤ 95% (Non-condensing) |
Welding Thickness (Stainless/Carbon Steel) | 0.5 - 4.0mm (2000W model can reach 5mm) |
Gun Length | ≥ 5 meters (Provides extensive reach and flexibility) |
Wire Feeder | Optional Automatic Wire Feeder |
Key Features | Plug-and-Play, Simple Operation, Energy Saving, Beautiful Welds |
ZHONGKE® Handheld Laser Welder Application Scenarios
Stainless Steel Products: Welding stair handrails, security doors/windows, kitchen equipment, advertising sign frames, stainless steel water tank panels.
Metal Fabrication: Welding and repairing electrical enclosures, sheet metal parts, ventilation ducts, display racks.
Equipment Repair: On-site repair of machinery housings, pipelines, and molds—saving time and effort by avoiding disassembly.
Aluminum Products: Welding aluminum alloy doors/windows, display frames, custom structures.
Custom Furniture: Fabrication and welding of metal furniture and creative home goods.
Our Core Services & Commitment
Free Sample Welding: We welcome you to bring or send your own workpieces for a free welding demo. Experience the "instant expert welder" effect firsthand.
Comprehensive Training: Purchase includes one-on-one video instruction and online practical training to ensure you can operate the machine independently.
Worry-Free After-Sales: Full machine warranty with global support. 7x24-hour technical guidance and fast spare parts supply.
One ZHONGKE® Handheld Laser Welder solves all your welding challenges!
Contact us now for your exclusive laser welding solution!
